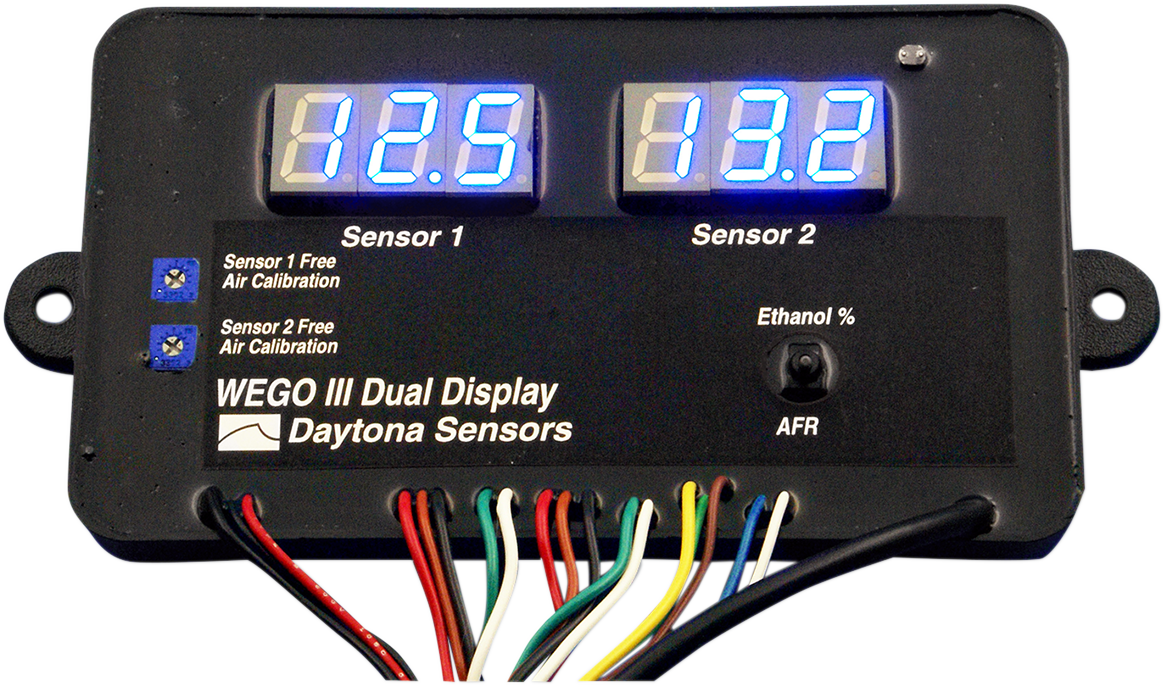

Wego III Wide-Band AFR (Air/Fuel Ratio) Monitoring System

WEGO III™ AFR System Sensor Kit

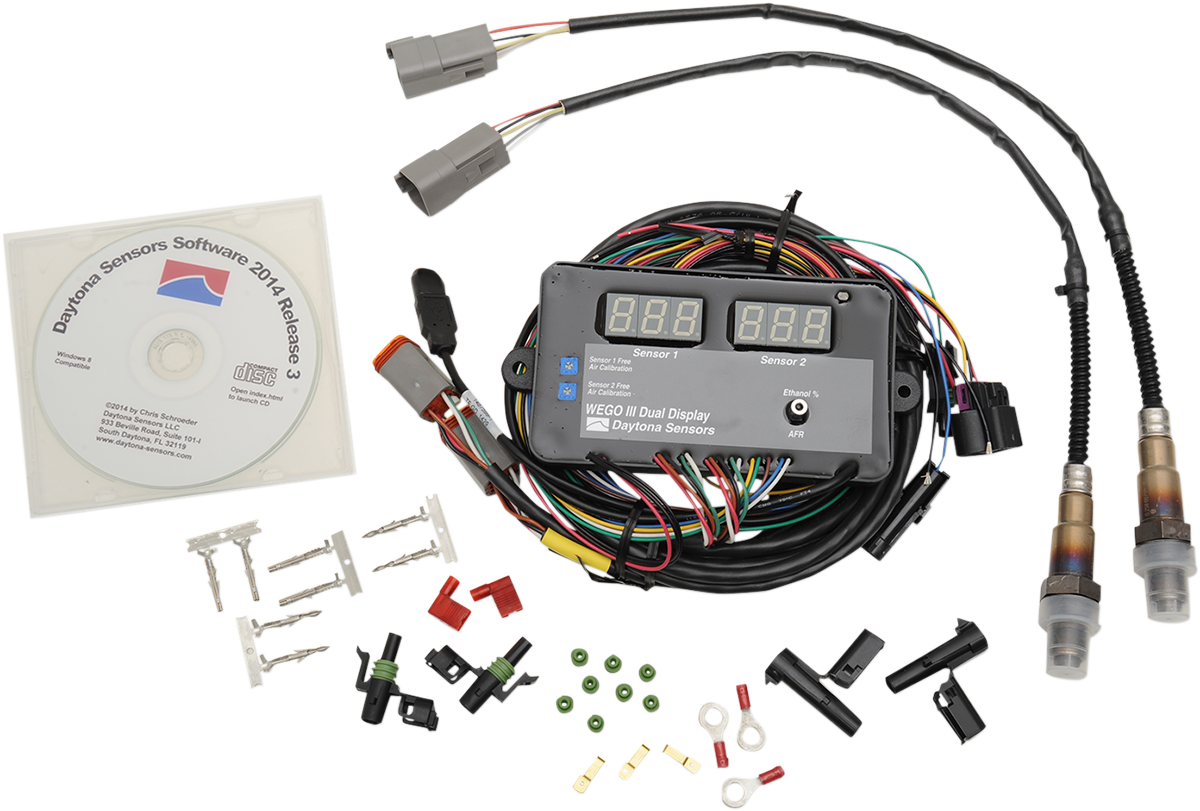

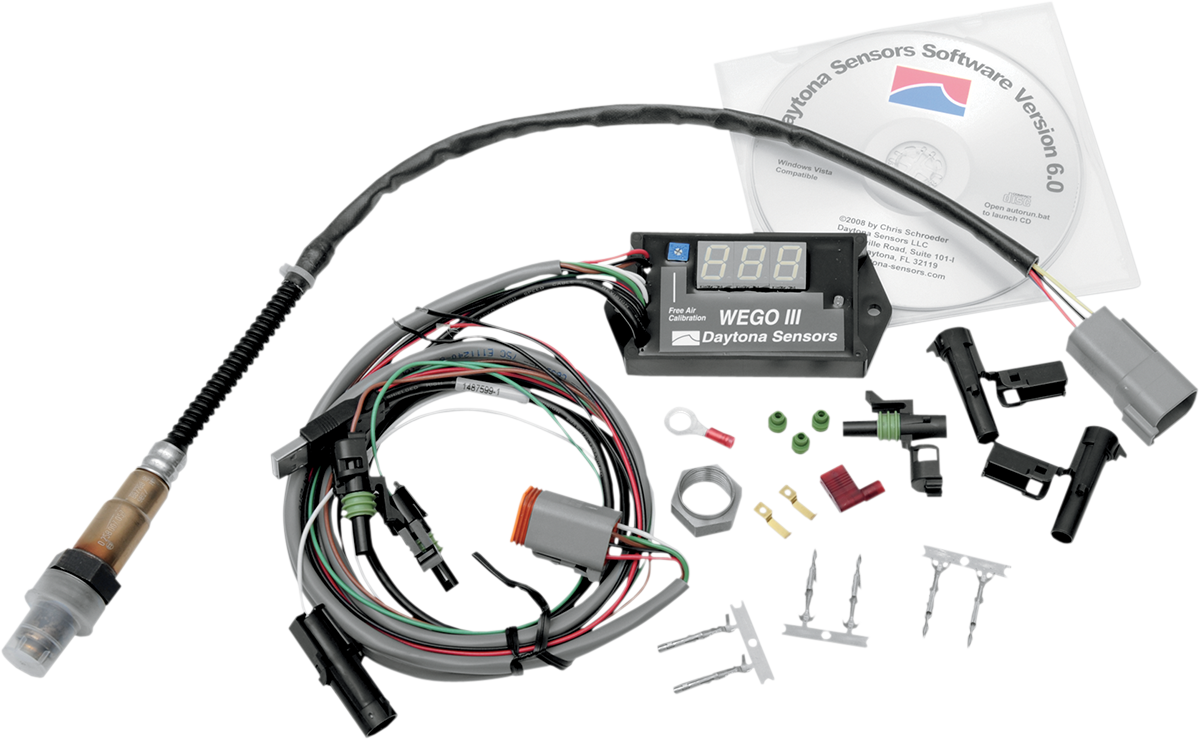

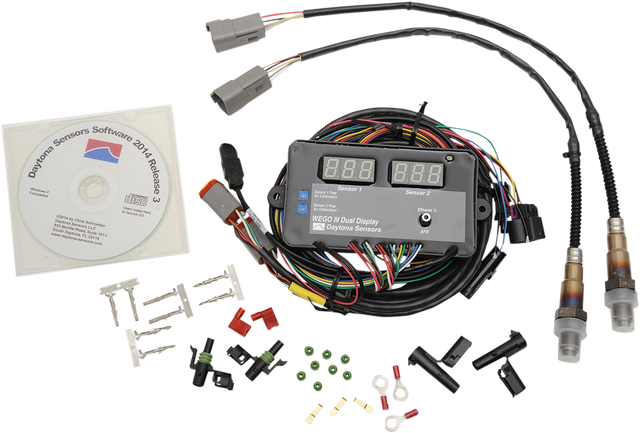

• Sold in a system that includes WEGO III wide-band exhaust gas oxygen sensor interface, 42" harness, Bosch LSU 4.2 five-wire wide-band oxygen sensor, 18 x 1.5 mm weld nut for mounting sensor on exhaust pipe and software on CD ROM
• WEGO III data logging software runs under Windows ME/XP/Vista; software allows AFR, engine rpm and analog sensor data with user-defined scaling; data can also be exported to Excel for further analysis
• Displays AFR (air/fuel ratio) and logs more than two hours data including AFR and engine rpm; spare 0-5V analog input for sensors such as throttle position or manifold pressure
• Wide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator; current drain is approximately 1 amp
• Waterproof, ultra-bright, daylight-readable blue LED display with automatic dimming under low-light conditions
• Can be used for on-road or dyno testing; suitable for motorcycle and other small engine applications
• Highly accurate with less than +/- 0.10 AFR error over 10.3-19.5 AFR range
• Easy free-air calibration procedure corrects for sensor aging effects
• Complete fuel/air ratio metering system with built-in data logging
• 0-5V analog AFR output for interface to dyno instrumentation
• Compact size: 4" L x 2" W x .5" H
• Made in the USA
