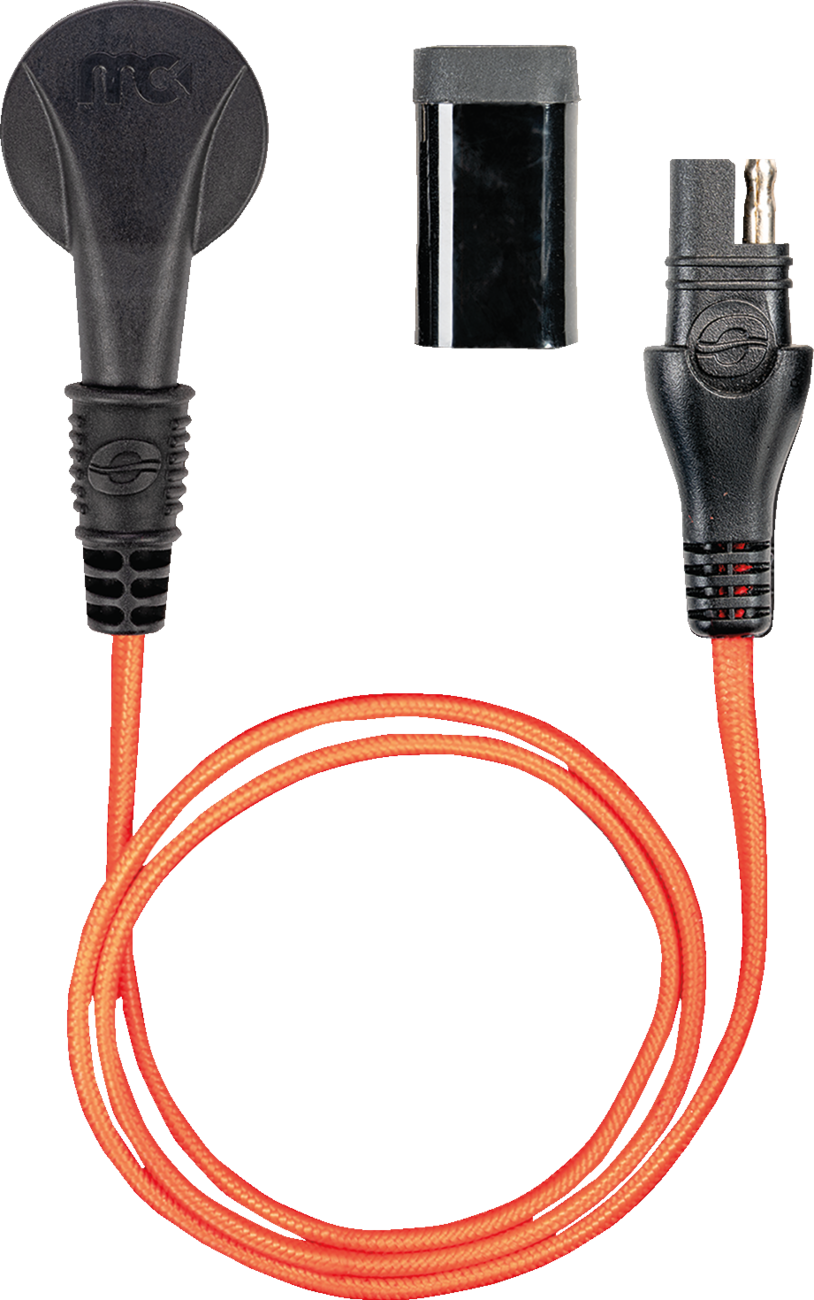

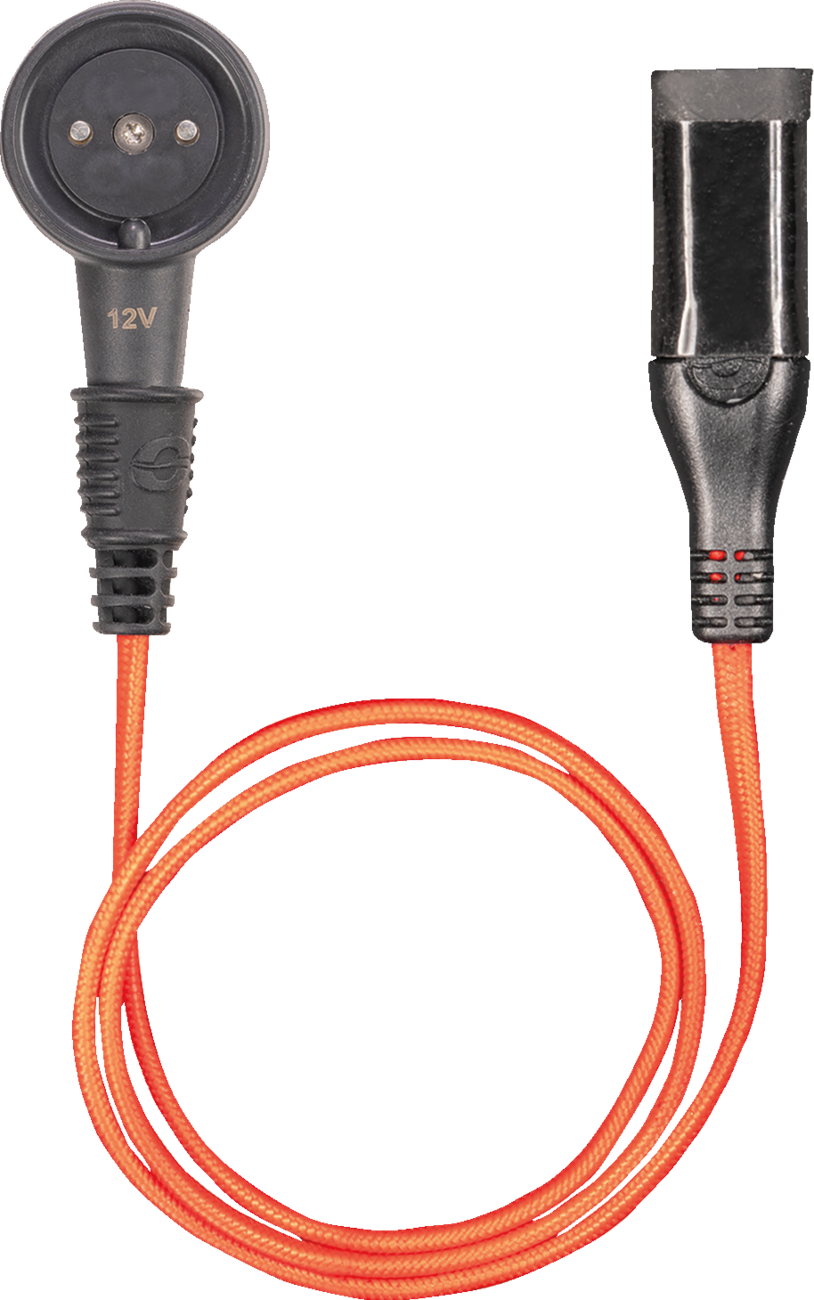

OptiMate™ Magnetic Clip Connection

Connector Cable - MagCode/Optimate - Magnetic/Clip

• Utilizes the MagCode 12 V magnetic connector clip, with 28” nylon sleeved 16 AWG cable ending in SAE connector that attaches to an OptiMate battery charger
• Provides a short-circuit proof, self-finding magnetic battery charger connection
• Premium specifications – 75 cm (30”) length, rated for 10 A (13 A max) current
• Connectors: MagCode 12 V clip to standard SAE
• Rubber in-line seal protects SAE connection
• Rated for low temperatures and outdoor use (-40°C/-40°F)
• Nylon cable protection
• Cable rating: 16 AWG (1.32 mm 2) SPT2-W
