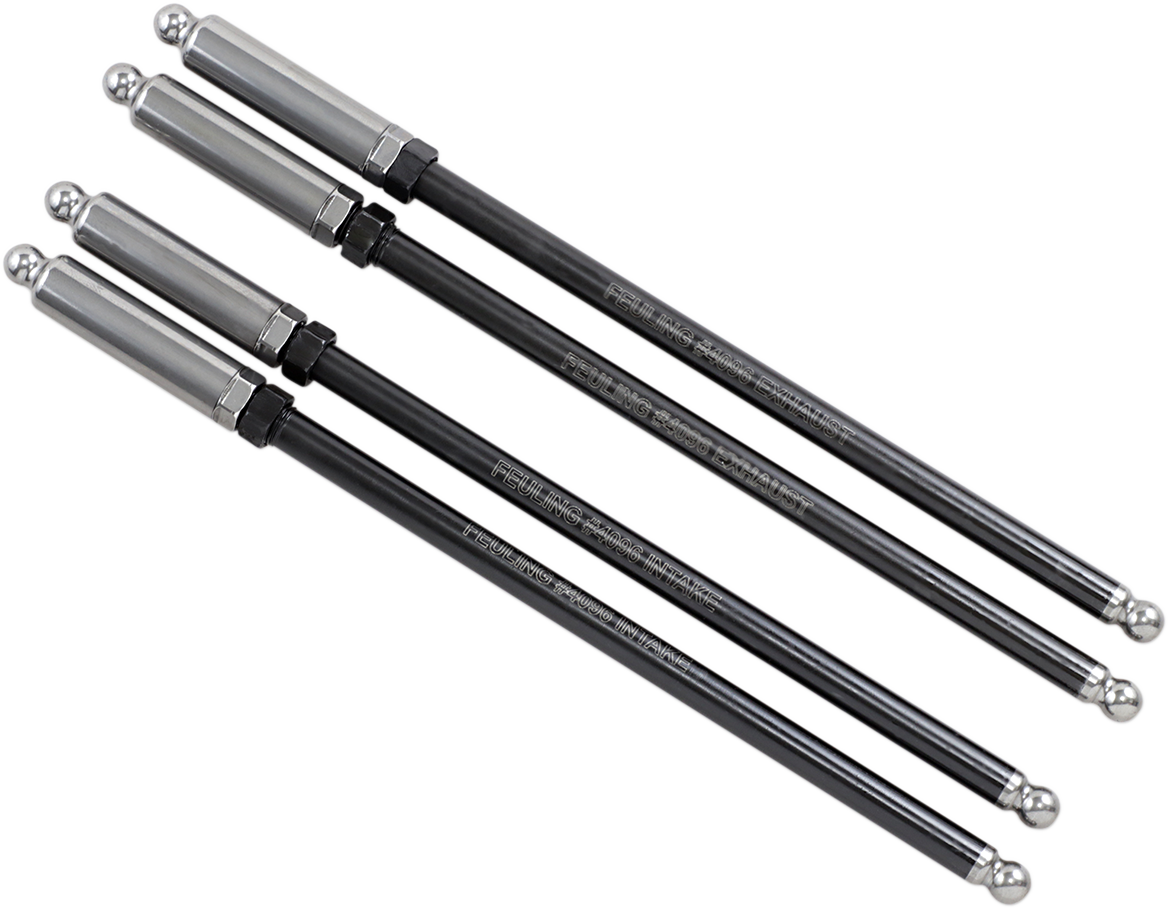

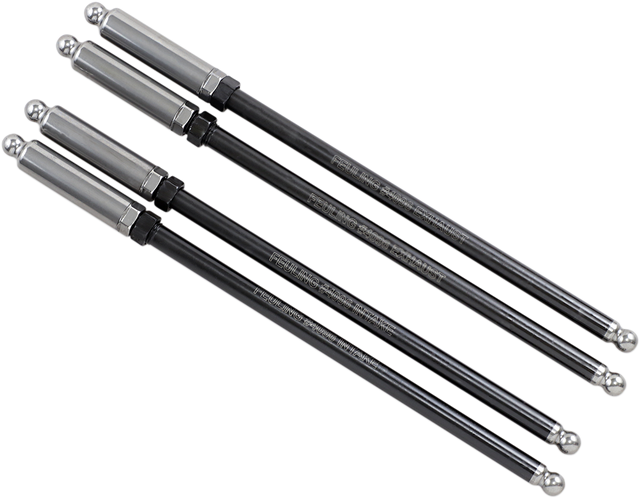

Quick Install Pushrods

Quick Install Pushrods - Adjustable - Twin Cam

• Strength and rigidity of Quick Install pushrods are second only to heavy-duty one-piece pushrods
• Tube material starts out as 7/16” rod OD, then gets turned down to 3/8” OD leaving heavy duty 7/16” - 20 threads for the base and jam nut
• 0.134” wall thickness
• Jam nut slides up the pushrod
• Base then loosens up into the pushrod to allow Quick Install access
• Individual length exhaust and intake pushrods
• Install without the removal of rocker covers
• Made in the USA
• Requires pushrod tube kit that is sold separately.
• Correct pushrod/lifter adjustment requires starting with fully pumped up lifters.
• Quick Install pushrods have 7/16” - 20 threads per inch. 0.050” adjustment per turn. Two turns = 0.100”.
