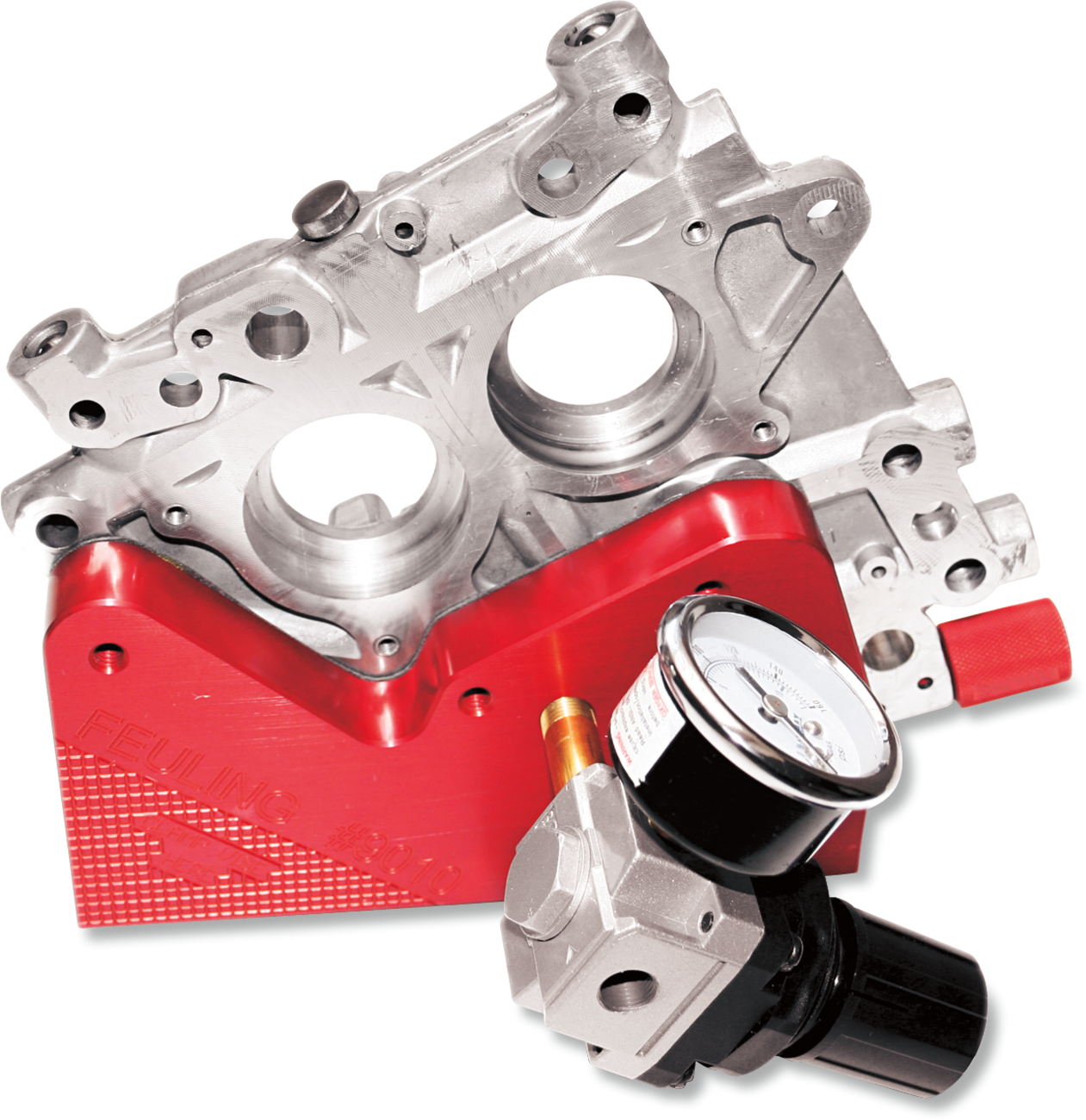

Camplate Tool

Camplate Tool - PSI Relief Valve - Twin Cam

• Allows the engine builder to know what psi the relief valve opens; the spring tension can be adjusted to achieve the desired pop off psi
• Tool includes:
• Air regulator
• 0-100 psi pressure gauge
• Gasket and needed hardware
• Made in the USA
• Feuling® recommends the cam plate valve be seated 0-30 psi with full pop off at 55-60 psi.
• Bench test cam plate before installation, cycle the pressure relief valve, testing operation and assuring the valve moves freely, seats and seals each time, any leakage at the relief valve will reduce oil pressure.
• Camplate psi tester fits all Twin Cam camplates factory and aftermarket, '07-'17 camplates will have 1 un-used bolt hole.
