Twin Scan Complete Kit

Diagnostic Scan Tool - Twin Scan - Complete - Kit

• Complete tuning and diagnostic solution
• Communicates with ECM and BCM to read, then clear diagnostic trouble codes
• Activates ABS solenoids for proper brake bleeding and testing
• Ideal tuning aid for Screamin' Eagle Pro Super Tuner (SEST), Dynojet Power Commander (PC) and Twin Tec Twin Tuner
• Includes all features of the standard twin scan units
• Real-time display of engine sensors along with built-in data logging with capability to store data for up to one hour
• Included PC software analyzes logged data, then displays front and rear cylinder AFR with the required volumetric efficiency (VE) using the same RPM rows and TPS/MAP columns in the Super Tuner tables
• Includes two analog inputs with 0-21 V or ± 200 V range as well as two-channel oscilloscope capability for waveform display
• Analog inputs can also be used for air/flow ratio (AFR)

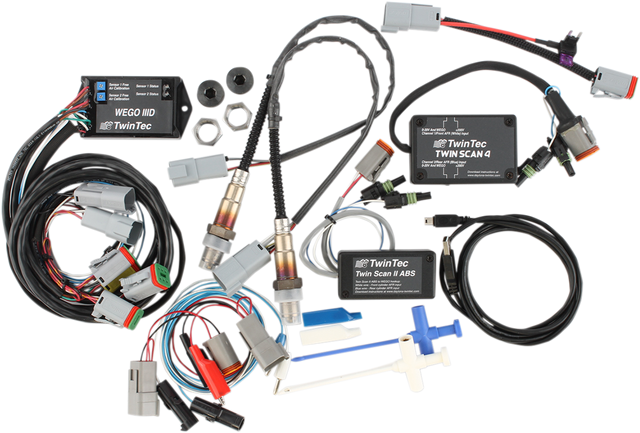

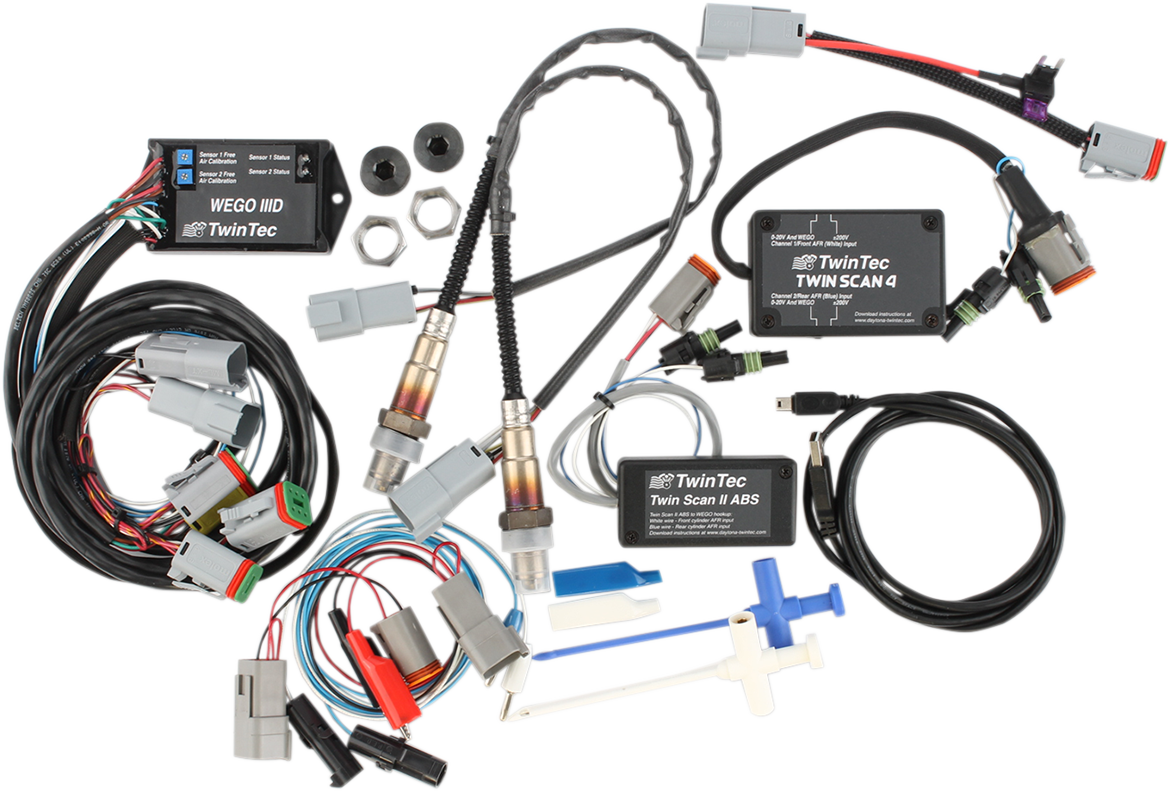

• Complete Kit Includes:
• Twin Scan II ABS for models with J1850 data bus
• Twin Scan IV for models with CAN data bus with six position DLC connector
• WEGO IIID for tuning capability with both twin scan versions
• Twin Scan III probe kit for use with the scopemeter feature of the twin scan
• Two Bosch LSU 4.2 wide-band oxygen sensors
• Two 18 mm x 1.5 weld nuts
• Two 18 mm x 1.5 hex socket plugs
• USB cable
• CD-ROM with software
• Requires use of a PC with Windows 7/8/10/11 for display.
